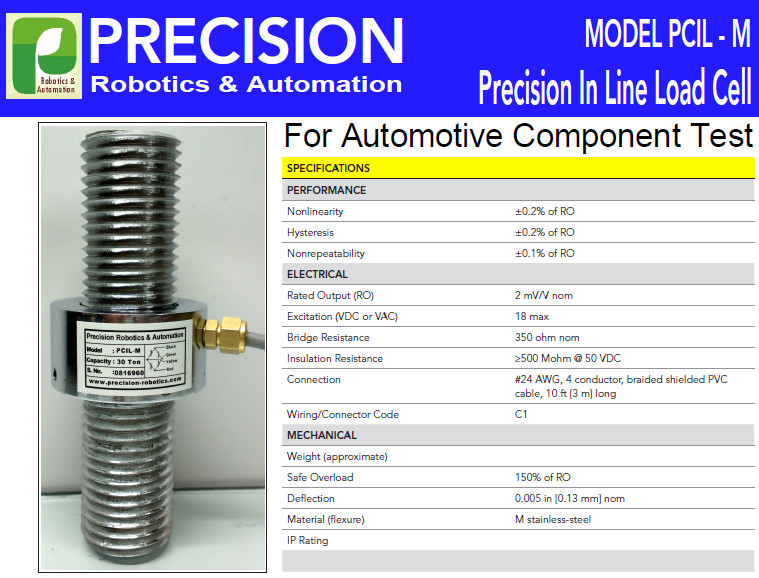

In-Line Load Cell
Model - PCIL-M
Capacity - 10 Ton to 50 Ton
Precision's in-line tension and tension/compression load cells are designed to be mounted inline to the load axis to measure tension and compression. In-Line load cell offered in both tension or tension/compression measurements, these load cell are constructed of all stainless steel with a wide variety of thread configurations making them ideal for field applications as well as laboratory settings. The tension/compression series are capable of withstanding significant off-axis loads, making them an ideal choice for in-line compression measurement or tension measurement where side loading cannot be completely controlled. Other Precision's in-line load cells are constructed of carbon steel and offer a smaller diameter design for mounting into an existing work system with tight spaces or clearances. Commonly used in Tensile testing machine, Automotive component test. Economical and easy to mount, these load cells allow simultaneous testing of multi-element systems. If you need special modifications or a complete custom design to meet your unique requirements, please contact to precision.
